MODEL |
MAX.WIDTH |
DIA. SCREW |
SCREW L:D |
CAPACITY (kg/h) |
SPEED |
TOTAL POWER |
YHPE-1500 |
1500mm |
65/55 |
32：1 |
70-100 |
700-1800 |
95KW |
YHPE-1600 |
1600mm |
65/55 |
32：1 |
70-110 |
700-1800 |
98KW |
YHPE-1800 |
1800mm |
70/55 |
32：1 |
90-130 |
700-1800 |
110KW |
YHPE-2000 |
2000mm |
75/60 |
32：1 |
100-150 |
700-1500 |
130KW |
YHPE-2200 |
2200mm |
80/65 |
32：1 |
110-180 |
700-1500 |
150KW |
YHPE-2500 |
2500mm |
85/70 |
32：1 |
130-200 |
600-1300 |
160KW |
YHPE-3000 |
3000mm |
100/85 |
32：1 |
150-250 |
600-1200 |
180KW |
YHPE-3500 |
3500mm |
110/95 |
32：1 |
160-280 |
600-1200 |
200KW |
Technical parameters:
model | Screw(mm) | Width(mm) | Production(kg/h) | power(kw) | Screw Length : diameter |
YHPEG-3000 | Φ100x3 | 3000 | 280 | 230 | 32:1 |
YHPEG-2500 | Φ90x3 | 2500 | 200 | 200 | 32:1 |
YHPEG-2000 | Φ75x3 | 2000 | 170 | 140 | 32:1 |
YHPEG-1800 | φ85,70 | 1800 | 120 | 120 | 32:1 |
YHPEG-1600 | Φ80,60 | 1600 | 100 | 110 | 32:1 |
YHPEG-1500 | Φ75,60 | 1500 | 90 | 110 | 32:1 |
YHPEG-1200 | Φ70,55 | 1200 | 70 | 82 | 32:1 |
YHPEG-1000 | Φ65,55 | 1000 | 70 | 82 | 32:1 |
Our Machines World Wide:
America,England,Spain,Bulgaria,Tunisia, India , Vietnam, Philippines, Singapore, Isreal, Turkey, Iran, Russia, Paraguay, Brazil, Canada, Tanzania etc.

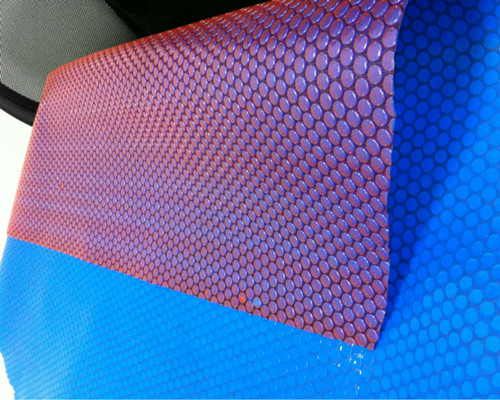

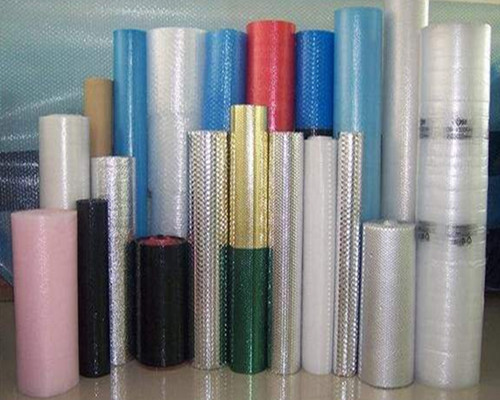

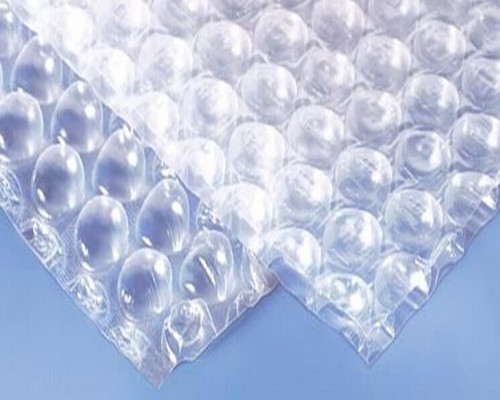

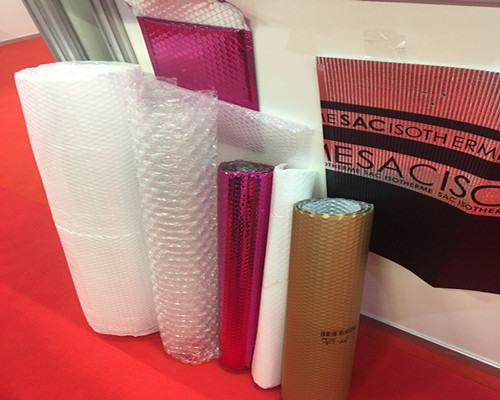

Our Bubble film production Range: from Width 1000mm To 3600mm (3.6meter width finished film)
Company Information

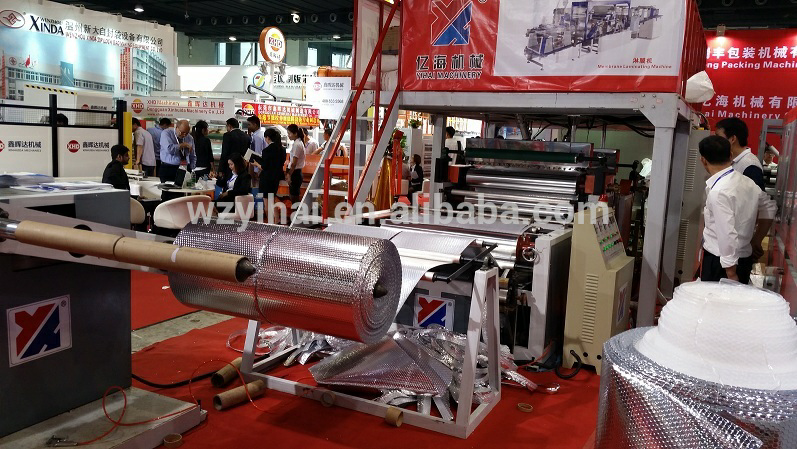

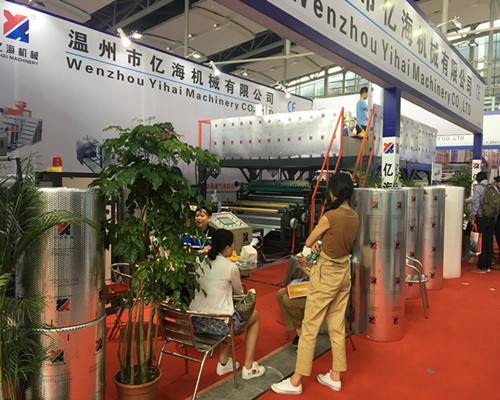

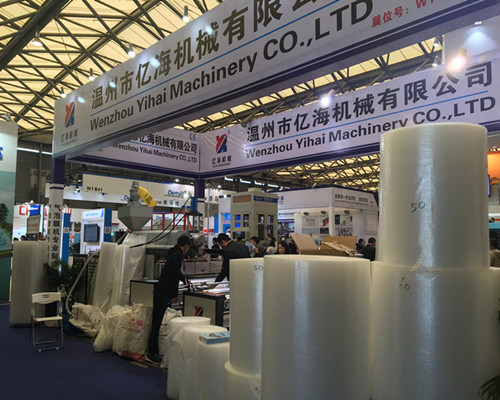

2015 Chinaplas exhibition
2016 Chinaplas exhibition
2017 Chinaplas exhibition
We Stick to the operation idea of talents first, market oriented and development driven by innovation, to strengthen the cooperation and exchange with more domestic and foreign high-tech enterprises. Give great impetus to the process of modernization and internationalization.
Youtube Vedio Link:
